Ceiling Lift Track System


Vancare Logo


VANCARE ceiling track systems help ensure the successful operation of your ceiling lift operation. We offer a large selection of track styles, track curves, and other components. You can trust your VANCARE representative to help you develop a track system that fits your unique needs.

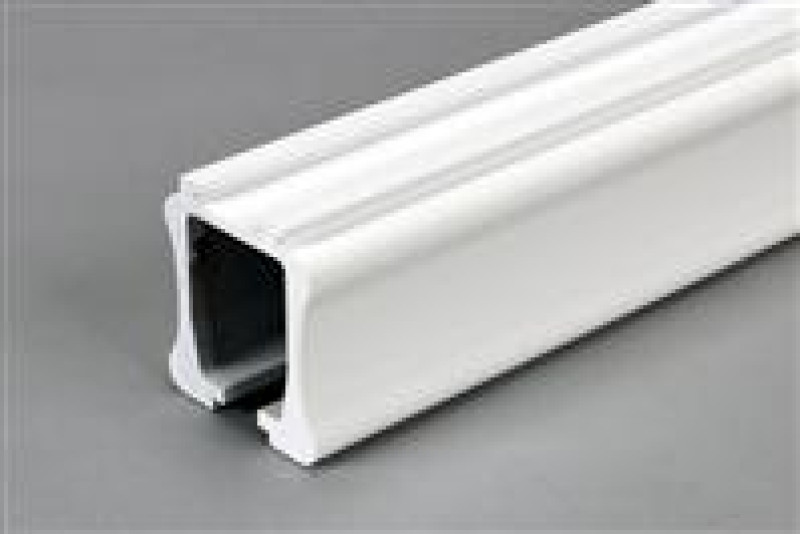

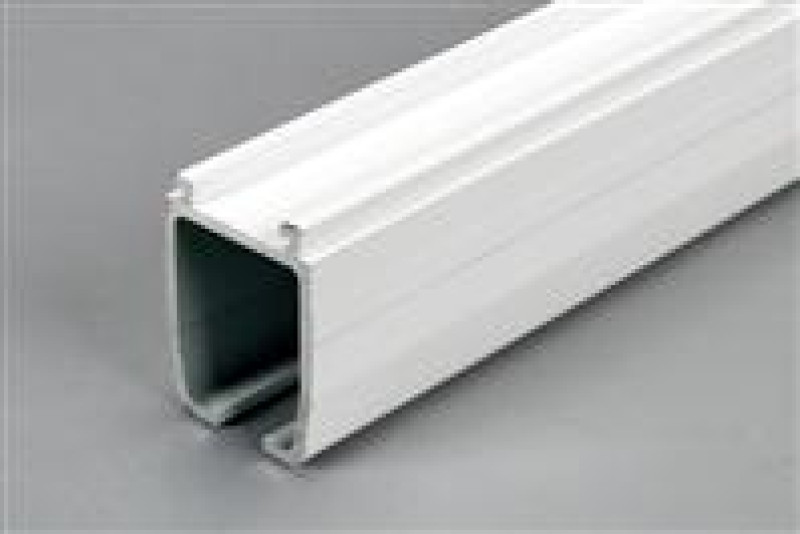

Straight Track

Straight Track

VANCARE straight aluminum track can be used in linear rail applications or as the support rails for an X-Y gantry system. Available in 6’4” (1.93 m), 8’2” (2.5 m), 10’2” (3.07 m), and 16’5” (5.0 m) lengths.

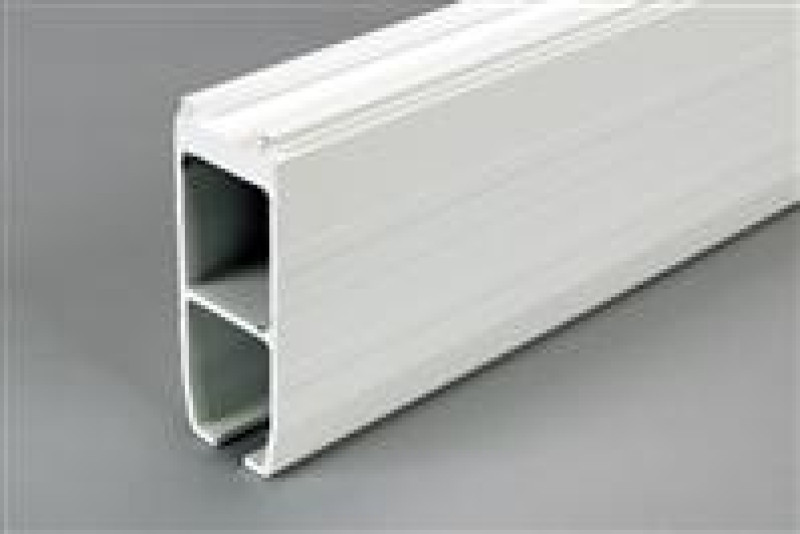

Super Track

Super Track

VANCARE offers the thicker profile of Super Track, which allows for extended spans between supports, making it ideal as the traverse boom for X-Y gantry systems and for Wall Mounting applications. Available in 10′ (3.0 m) and 12.5″ (3.73 m) lengths.


Track Plus

Track Plus

VANCARE’s Track Plus is most commonly used to accommodate longer, unsuspended spans. Available in 16.5’ (5.0 m) and 19’8” (6.0 m) lengths. Ideal for traversing booms in two-bed suites, PT rooms and anywhere long unsuspended spans are needed.

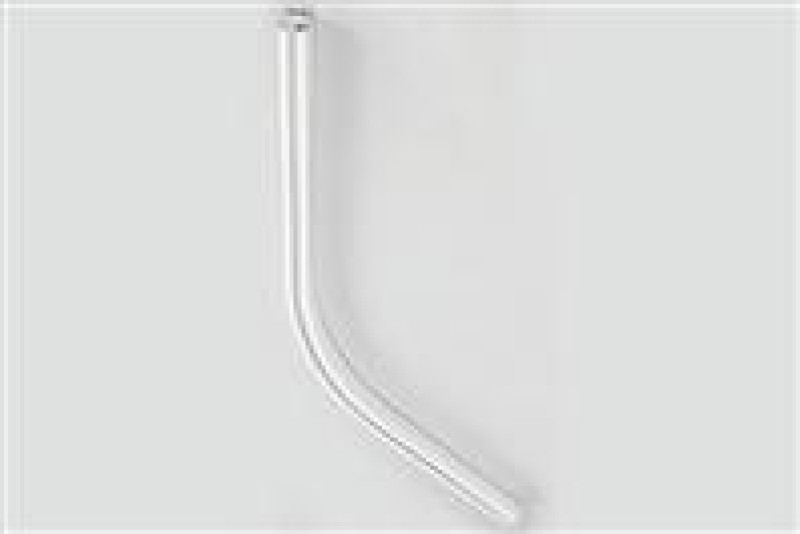

Curve Track 45 Degree

Curve Track 45 Degree

Curved tracks are used to change the direction of tracks in a single-track system. The 45 Degree Curve can be used with other straight or curved tracks. Available in “inside” and “outside” designs to allow for the finished side of the track bracket to remain consistent throughout the installation.

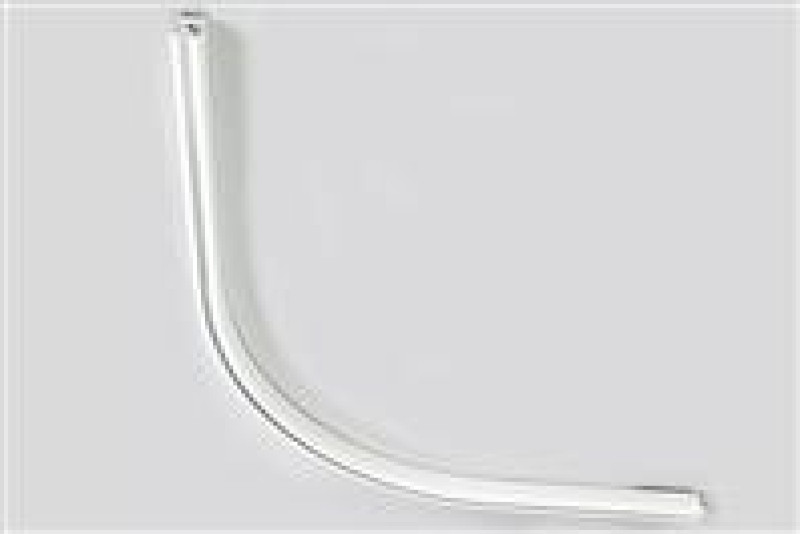

Curve Track 90 Degree

Curve Track 90 Degree

Curved tracks are used to change the direction of tracks in a single track system. The 90 Degree Curve can be used with other straight or curved tracks. Available in “inside” and “outside” designs to allow for the finished side of the track bracket to remain consistent throughout the installation.


Quick Curve 90 Degree

This curve is currently available for the P-Series and C-Series Manual Ceiling Lifts. The Quick Curve is a 90-degree curve with a turning radius of 8″ potentially avoiding the requirement for more costly installation options. Mounted only to the adjacent sections of straight track, the Quick Curve offers a more cost effective installation.

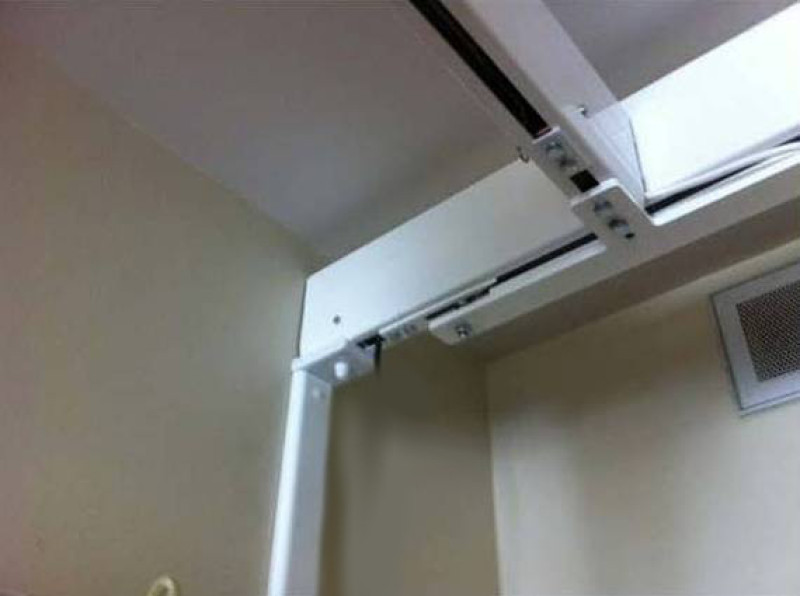

Wall Mount System

Wall Mount System

The Wall Mount System is used as an alternative to ceiling mounting. The system comes complete with all hardware and can be      attached directly into drywall provided that it is at least 3/8″ thick. Quickly installed, the Wall Mount System offers the same stability as ceiling installations. It can be used for pre-existing as well as new construction.


Wall Mount 6″ Bracket

Wall Mount 6″ Bracket

Sold separately, the Wall Mount 6″ bracket is used with the Heavy Duty Wall Bracket to attach the track.

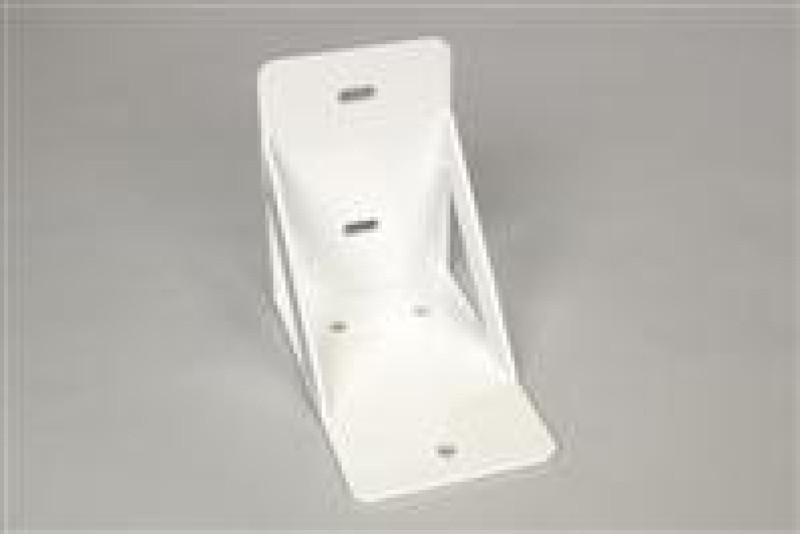

Wall Mount Bracket

Wall Mount Bracket

The Wall Bracket allows for track to be installed directly into the wall where ceiling mounted applications are not practical.

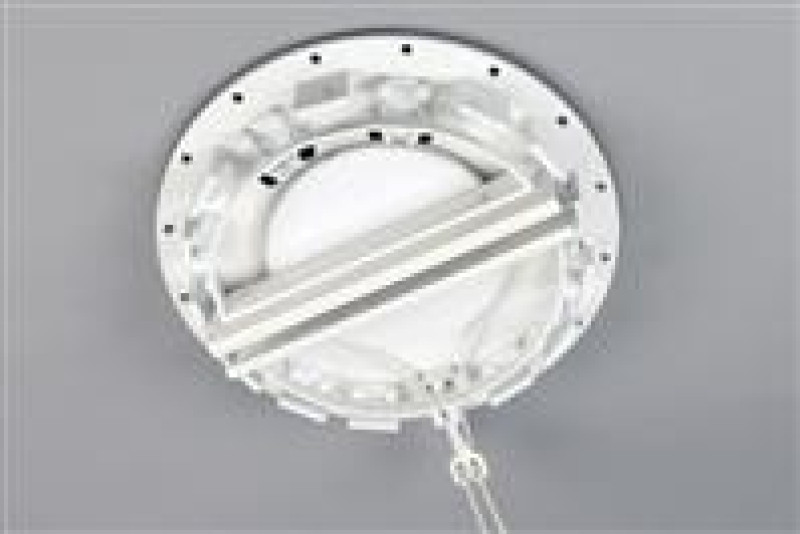

Multi-Port Turntable 16 Port

Multi-Port Turntable 16 Port

The Multi-Port Turntable provides the end-user with ultimate flexibility in lift and transfer situations that demand a wide range of locations. The turntable provides 15 different ceiling track take-off points at 22-degree intervals. The turntable is easily rotated with the use of a simple pull-cord mechanism.


Power Multi-Port Turntable 14 Port

The Power Multi-Port Turntable offers the end-user ultimate flexibility in situations that require access to a number of transfer locations. The turntable provides 14 take-off points.

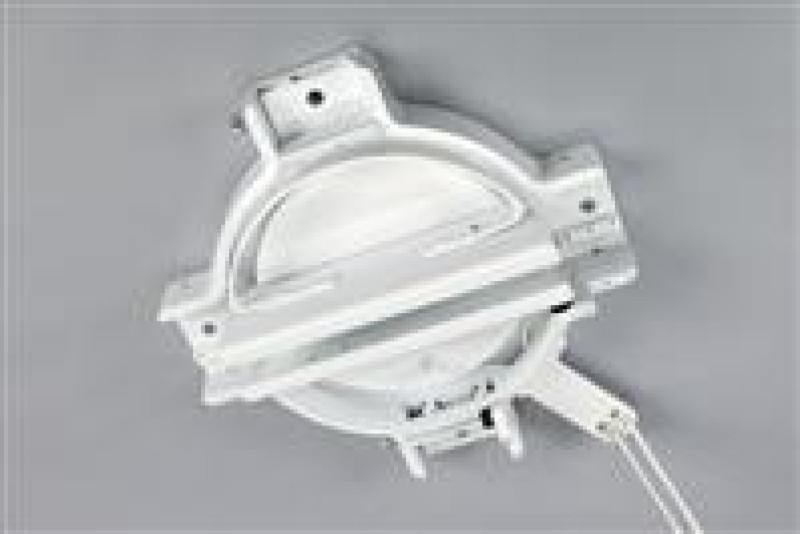

Quick-Fit Turntable

Quick-Fit Turntable

The Quick-Fit turntable allows for directional change at 90-degree intervals. The turntable is rotated using a simple pull-cord mechanism.
